Top Anchor Device chain belay stainless steel
2 x bolt hanger, carabiner D ASYMM screw
Art.no.: HK04HH

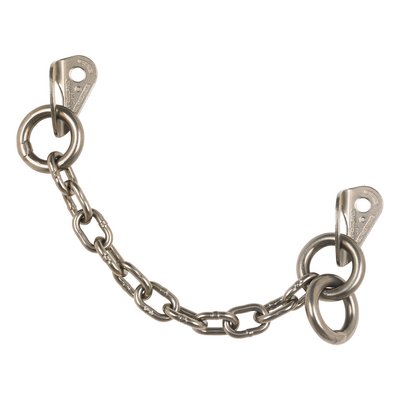

Belay station with two 10 mm bolt hangers, a chain, and a D-shape carabiner with screwlock and splint. The recommended drill hole distance needs to be 25-30 cm.
Please note the latest UIAA release concerning stress corrosion in our knowledgebase.
use cases:
sports climbing, canyoning, equipment
Size variations:
share
Technical specifications
Main material stainless steel / polished
Maincolor colorless
Weight735g
Total length30cm
Length113mm
Width70mm
Lockscrewlock
Min. breaking load in longitudinal direction40kN
Gate opening25mm
Made in AustriaEAN Code9006381006564
Standards EN 959:2018, EN362:2004 (M), EN12275:2013 (B), UIAA 123 "GC class"
