Top Anchor Device chain belay stainless steel
2 x bolt hanger, carabiner D ASYMM
Art.no.: HK03HH

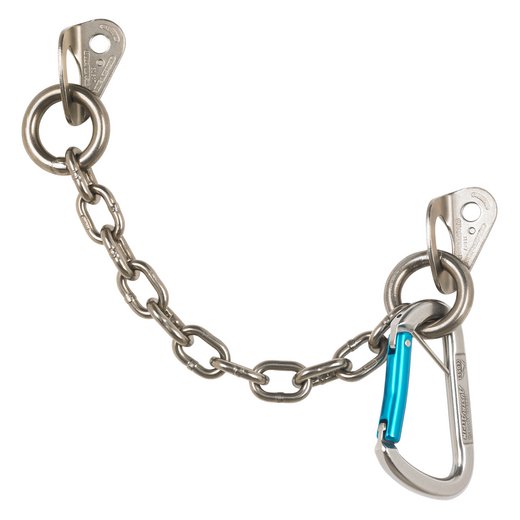

Belay station with two 10 mm bolt hangers, a chain, and a D-shape carabiner with snapgate and splint. The recommended drill hole distance needs to be 25-30 cm.
Please note the latest UIAA release concerning stress corrosion in our knowledgebase.
use cases:
sports climbing, canyoning, equipment
Size variations:
share
Technical specifications
Main material stainless steel / polished
Maincolor colorless
Weight663g
Total length30cm
Length113mm
Width70mm
Lockbent snapgate
Min. breaking load in longitudinal direction33kN
Gate opening24mm
Made in AustriaEAN Code9006381480340
Standards EN 959:2018, EN 12275:2013, UIAA 123 "GC class"
