COBRA QUICK RELEASE

The safest buckle worldwide.

The patented AUSTRIALPIN COBRA® QUICK RELEASE BUCKLES are, without equal, the safest, most durable and highest quality buckles in the world. The buckle is characterized by the fact that it cannot be opened under load (apart from the models for load security). This makes it the best choice when it comes to ensuring the highest level of safety for yourself or your customers.

COBRA® buckles are CNC machined, assembled, tested and packaged in our ISO-certified quality assurance facility. All COBRA® products are tested and certified by highly respected independent test houses and exceed all applicable CE, EN, CSA, ANSI and NFPA standards for fall protection and personal safety. Our superior designs and commitment to quality ensure the highest levels of reliability and assurance of safety and strength.

COBRA® buckles are made from the highest quality 7075 aluminum alloy and are constructed of solid brass and stainless steel components. Each production batch is randomly tested for strength, and in the case of our NFPA models, all are individually loaded with 11 kN. We offer a wide range of sizes, styles, styles and models for virtually every conceivable application.


COBRA® COMPARISON OF TYPES

COBRA® is always the same COBRA®? Well, not quite true! AUSTRIALPIN manufactures many different types of COBRA® Quick Release Buckles for many different use cases. These COBRA® types differ in the material they are made of, as well as their breaking strength and intended application of use. One thing though always stays the same: the reliable functionality of the buckle, the precise manufacturing process in AUSTRIA and the usage of raw material in the highest quality only.

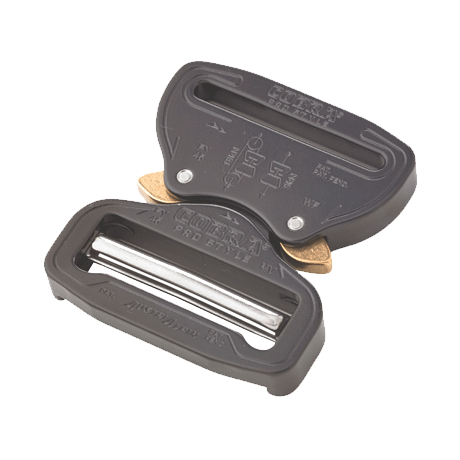

COBRA® PRO STYLE
COBRA® PRO STYLE  [ The evolution of the legendary COBRA® THE ORIGINAL. ]

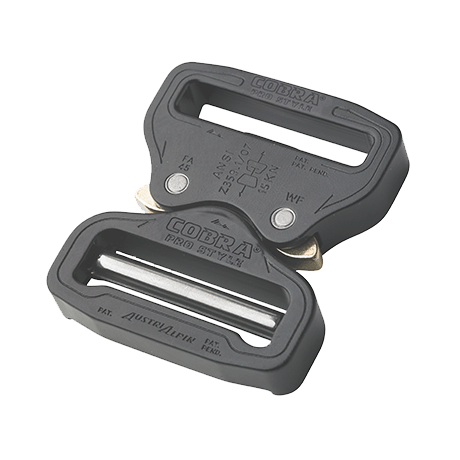

COBRA® PRO STYLE 18 kN
COBRA® PRO STYLE 18 kN  [ The COBRA® PRO STYLE with a breaking load tensile strength of 18 kN complies with the ANSI standard. ]

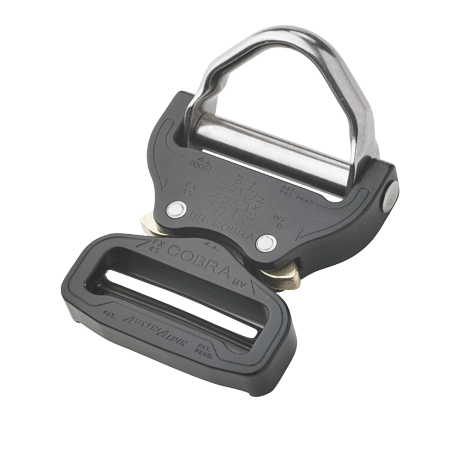

D-RING COBRA® PRO STYLE 18 kN
D-RING COBRA® PRO STYLE 18 kN  [ COBRA® with extended application range thanks to the patented D-Ring. ]

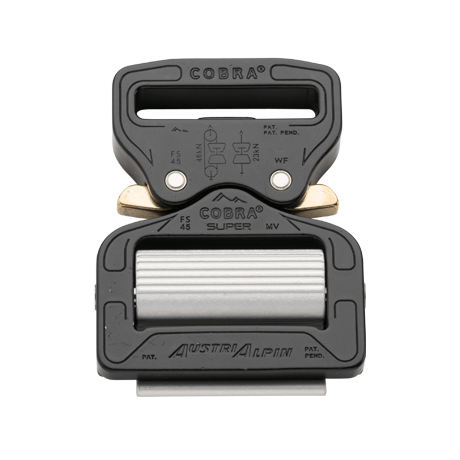

SUPER COBRA®
SUPER COBRA®  [ The strongest COBRA® with 23 kN breaking load tensile strength. ]

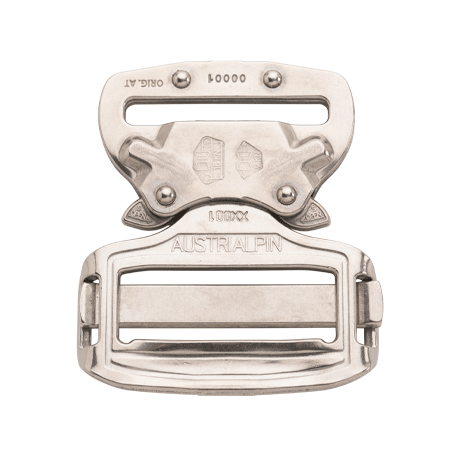

COBRA® NAUTIC
COBRA® NAUTIC  [ COBRA® made of stainless steel for applications on the high seas. ]

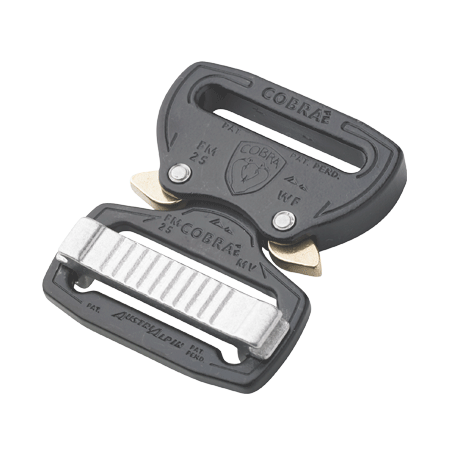

COBRA® FM
COBRA® FM  [ Small COBRA® for fashion or leisure activities application. No PPE! ]

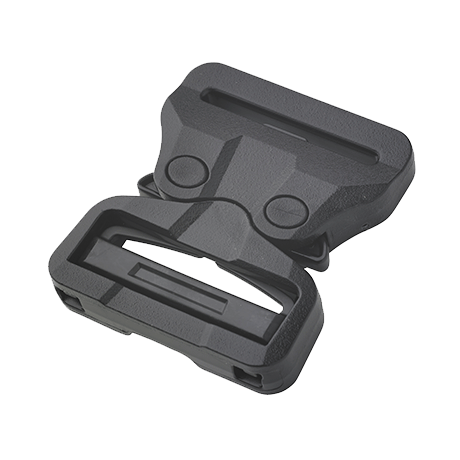

GT COBRA®
GT COBRA®  [ COBRA® made of 100 % polymer. ]

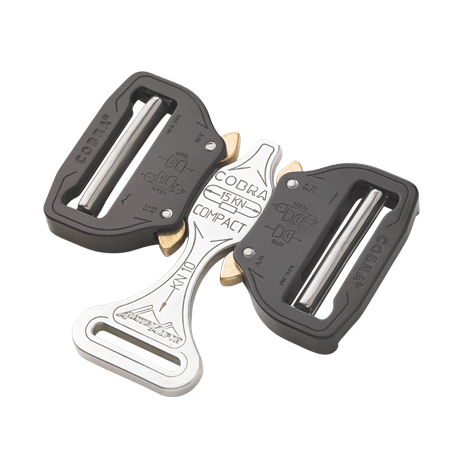

COBRA® SPECIAL DESIGNS
COBRA® SPECIAL DESIGNS  [ Various COBRA® components for special applications. ]

COBRA® FEATURES

FUNCTIONALITY

The COBRA® Quick Release is a buckle which meets the highest safety requirements.

1. RELEASE
Press both clips at the same time to open the COBRA®. One-sided release (pressing only one clip) is impossible.

2. OPEN
A release under tension is impossible (with the exception of the “Open Under Load“ models)

3. CLOSE
One-sided locking is nearly impossible. Locking is confirmed by “clicking” sound.

COMPATIBILITY

All COBRA® models are available in different standard sizes. All COBRA® Quick Releases within the same type (e.g. PRO STYLE and ANSI PRO STYLE) can be combined with all sizes (25–58 mm) and variants (adjustable, non-adjustable) of the male and female part. The breaking load always stays the same!

PLEASE NOTE:
The COBRA® PRO STYLE STEEL must not be combined with the COBRA® PRO STYLE made of Aluminium!


COMBINATIONS

AUSTRIALPIN offers a high in-house production depth of its COBRA® buckles. For example, the male and female buckle parts of the COBRA® PRO STYLE are available as adjustable or non-adjustable versions in the sizes of 25, 33, 38,45,50 and 58mm. Thanks to the possibility to combine the parts with different size and adjustability options there is a COBRA® buckle for almost any application.

For questions concerning components and order modalities please contact the AUSTRIALPIN headquarters via e-mail at office@austrialpin.at
North American Customers are in best hands when contacting AUSTRIALPIN Inc., our exclusive North American Distribution, at info@austrialpin.net




APPLICATION FIELD

The COBRA® Quick Release buckle is the benchmark when it comes to safety of men and material. Manufacturers around the globe trust in the COBRA® components which are available in many different models and are constantly revised and improved. Because of their diversity they are used in a wide range of fields – in the tactical sector, for rescue services and fall protection as well as in the fashion industry.

Find out more about the application range on our COBRA Instagram channel.

STOCK CAR SAFETY
QUICK RELEASE ON A PLATE CARRIER
DOG COLLARS AND HARNESSES
FIREFIGHTER EQUIPMENT
