FERR.DA
FERR.DA
FERR.DA
FERR.DA

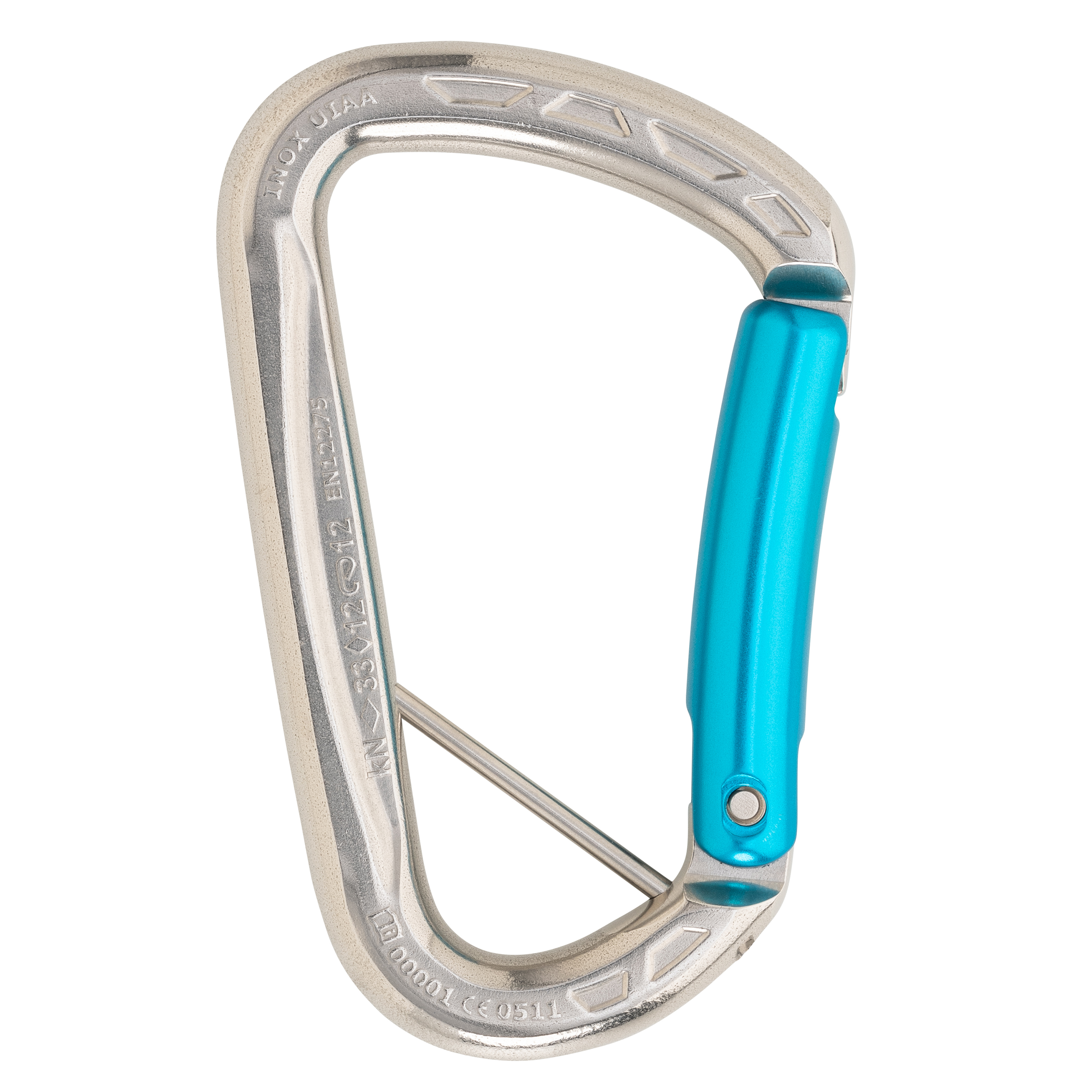

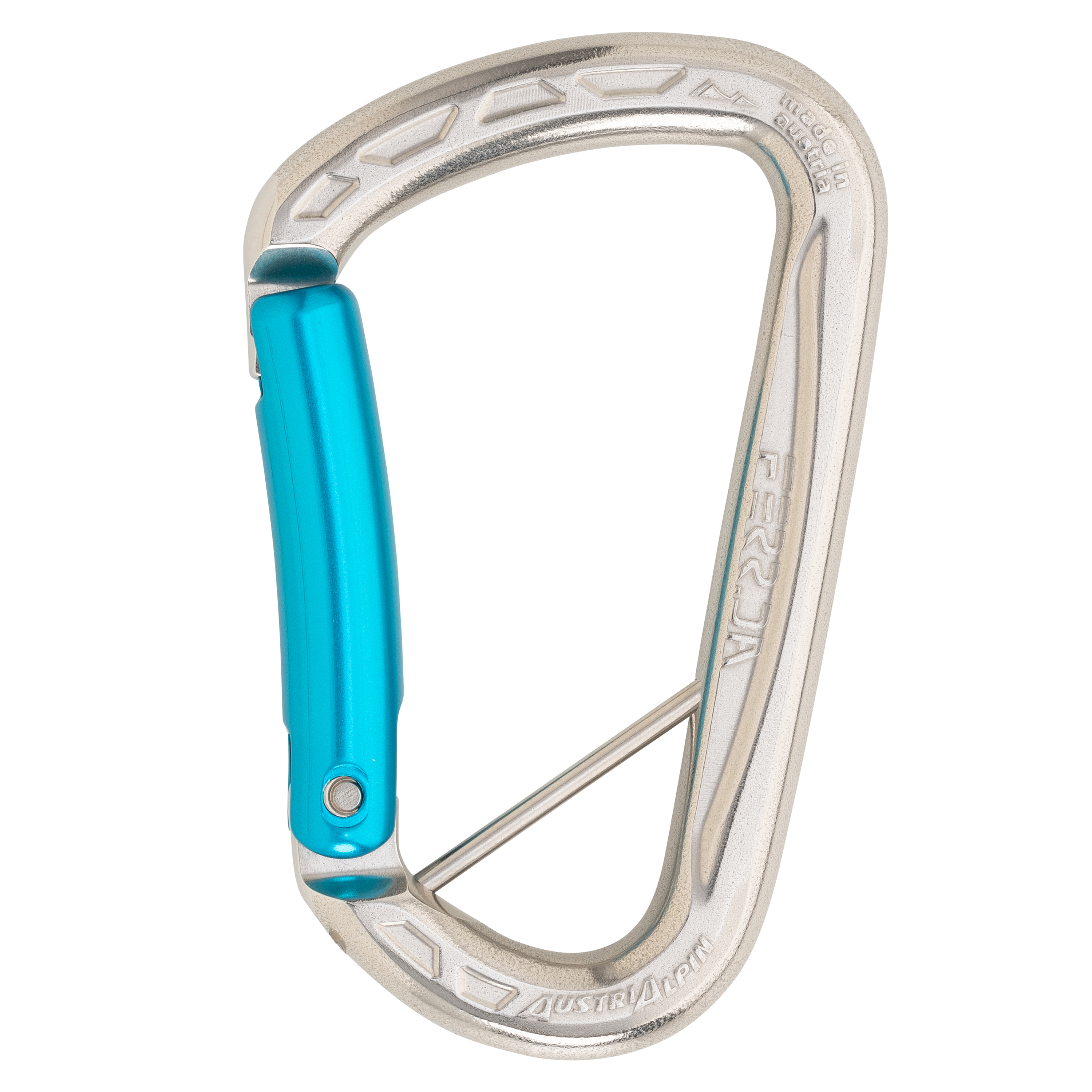

FERR.DA snapgate

stainless steel 33 kN, with splint

Art.no.: NW82A-L

The strong FERR.DA stainless steel carabiner is a reliable connector on the vertical. Its asymmetrical D-shape offers plenty of space and easy handling in demanding situations.

The version with gate and split is used where fast rope clipping is required. It is therefore frequently used as a top anchor carabiner for outdoor climbing routes.

With a considerable breaking load of 33 kN, the carabiner guarantees maximum stability and safety. The round cross-section ensures gentle rope guidance and reduces abrasion even under dynamic loads.

The split pin is installed on site to lock the carabiner to the anchor. This prevents theft and keeps the carabiner from twisting. This maximizes carabiner breaking strength because the force is always applied along the main axis. The split pin itself is not designed to take loads. Detailed assembly instructions can be found in the operating manual.

Manufactured in Austria from high-quality stainless steel, the FERR.DA snap carabiner with split pin features outstanding corrosion resistance and durability. It is a reliable partner for use in extreme conditions.

use cases:

canyoning, equipment, sports climbing

Technical specifications

Main material stainless steel / polished
Maincolor colorless
Weight208g
Length113mm
Width70mm
Min. breaking load in longitudinal direction33kN
Min. breaking load in the minor axis12kN
Min. breaking load with open gate12kN
Lockbent snapgate
Gate opening24mm
Made in Austria
EAN Code9006381029259
Standards EN 12275:2013 (B), UIAA 121
