FERR.DA
FERR.DA
FERR.DA
FERR.DA

FERR.DA triplelock

stainless steel 40 kN, with splint

Art.no.: NW32A-L

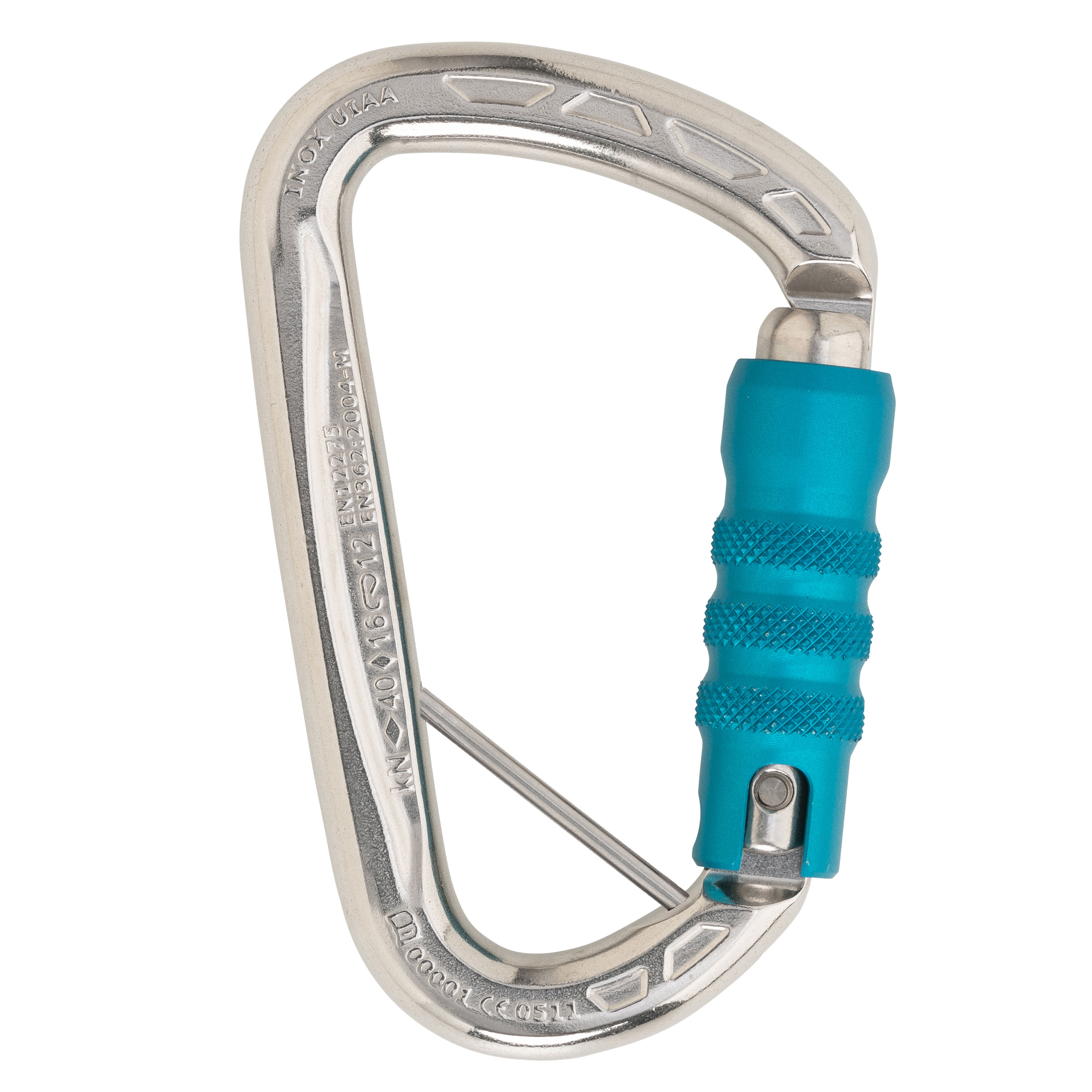

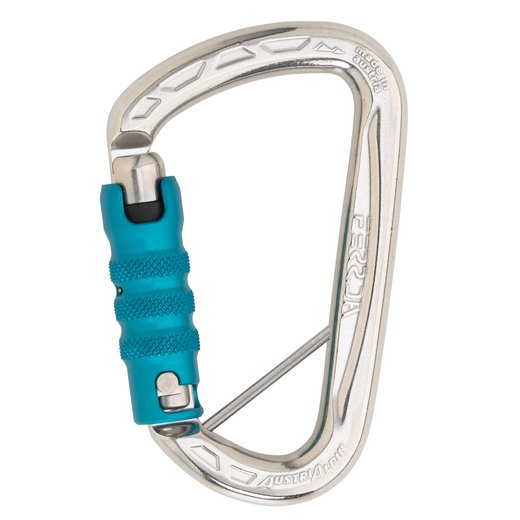

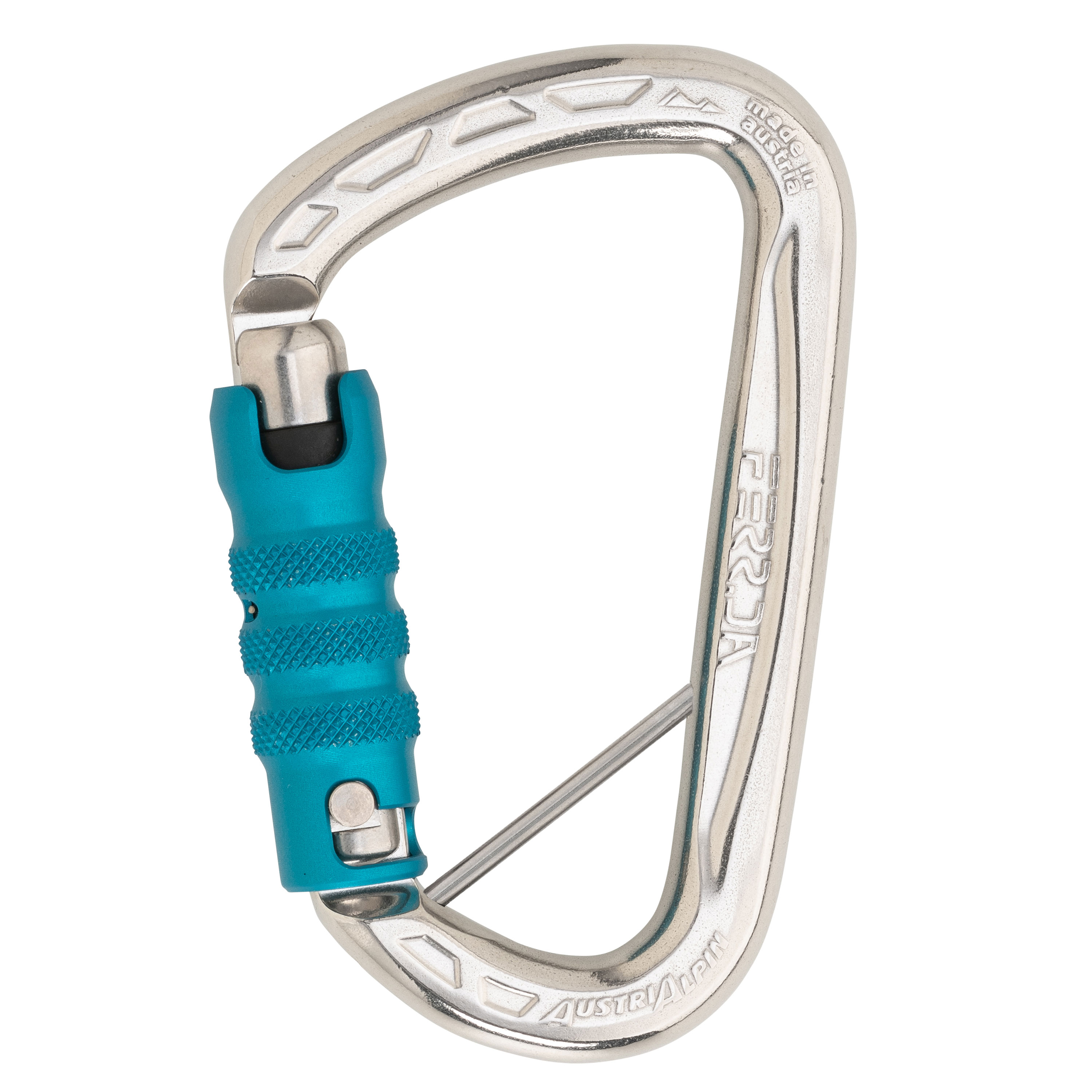

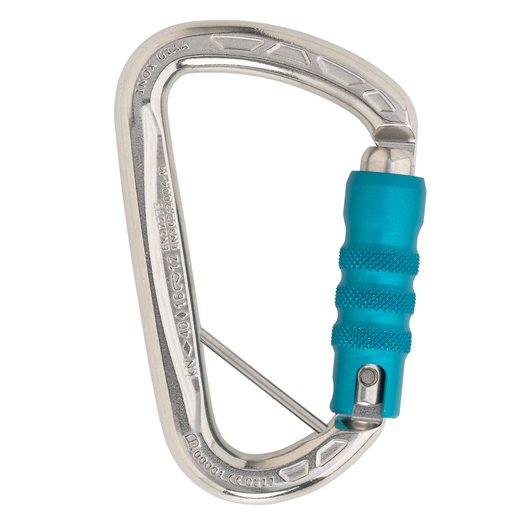

The strong FERR.DA stainless steel carabiner is a reliable connector on the vertical. Its asymmetrical D-shape offers plenty of space for numerous connecting elements and complex rope structures.

This 3-way autolock model offers a high degree of safety. The triple -lock carabiner can only be opened by performing three successive actions: Lift the sleeve, twist it, and push in the gate. This makes unintentional opening virtually impossible, even in the event of strong movement, friction or snagging. Once the gate is released, it automatically locks.

With an impressive breaking load of 40 kN, the carabiner guarantees maximum stability and safety. The round cross-section ensures gentle rope guidance and reduces abrasion even under dynamic loads.

The splint is installed on site to lock the carabiner to the anchor. This prevents theft and keeps the carabiner from twisting. This maximizes carabiner breaking strength because the force is always applied along the main axis. The split pin itself is not designed to take loads. Detailed assembly instructions can be found in the operating manual.

use cases:

PPE, equipment

Technical specifications

Main material stainless steel / polished
Maincolor colorless
Weight239g
Length113mm
Width70mm
Min. breaking load in longitudinal direction40kN
Min. breaking load in the minor axis16kN
Min. breaking load with open gate12kN
Lock3-way autolock
Gate opening25mm
Made in Austria
EAN Code9006381030033
Standards EN 12275:2013 (B), EN 362:2004 (M), UIAA 121
