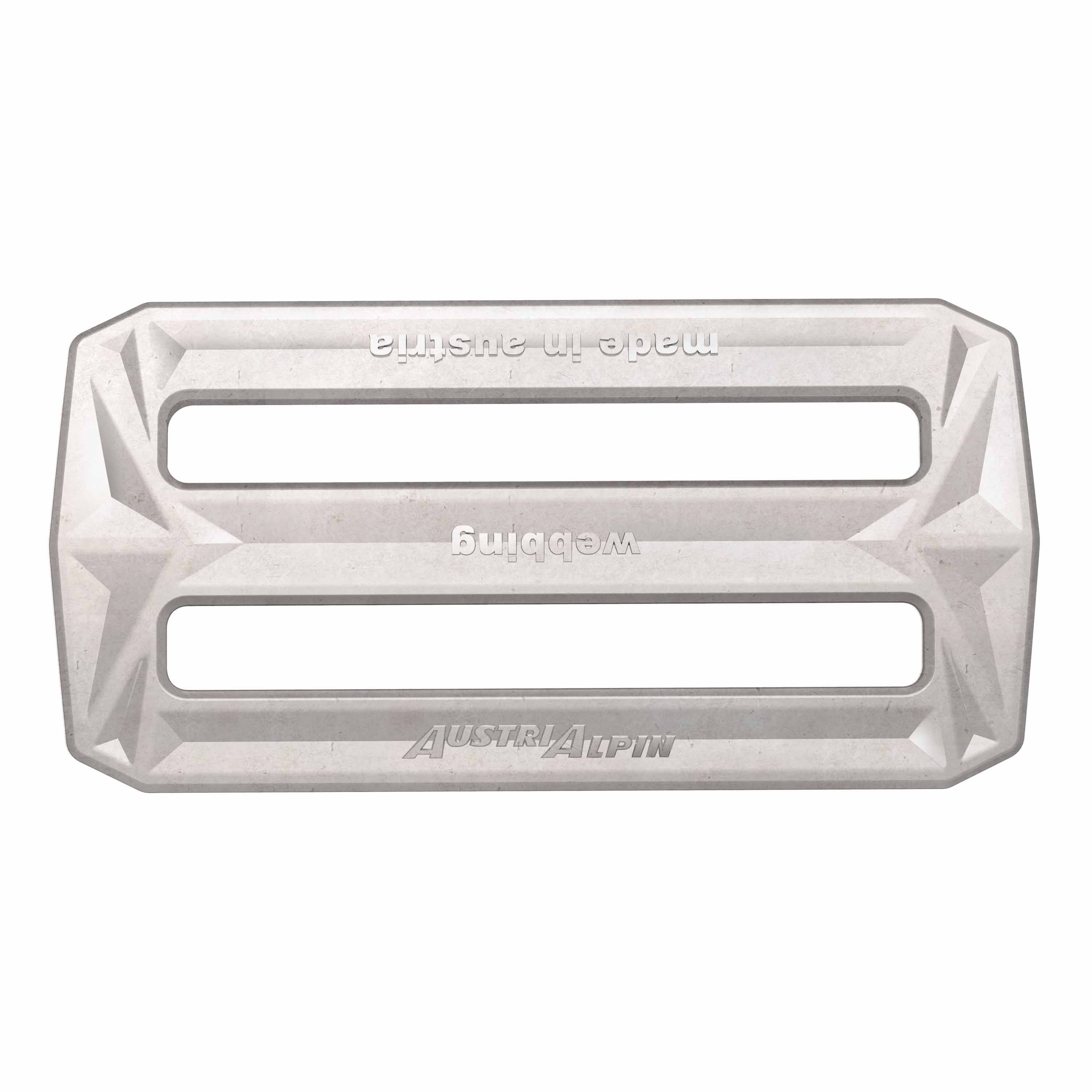

2-SLOT-FRAME BUCKLE
45 mm
Art.no.: DY45AFS
The next generation of ergonomically arched 2-slot-frame buckles impresses with a completely redesigned look and maximum functionality. Thanks to the embossed batch number, each buckle can be reliably traced.
The new models retain all proven technical properties of their predecessors. These include high tensile strength for maximum safety and load capacity, as well as excellent corrosion resistance in accordance with EN ISO 9227.
2-slot framebuckle DY45AFS must be used in combination with matching framebuckle DY45_FB only.
use cases:
PPE, Fashion, air sports, tactical, equipment
Technical specifications
Main material aluminium / polished
Maincolor colorless
Breaking load tensile strength7.5kN
Breaking load loop configuration15kN
Weight14g
Recomm. webbing width45mm
Outer dimension length30mm
Outer dimension width60mm
Outer dimension depth4mm
Made in AustriaStandards EN ISO 9227
Similar products & accessories

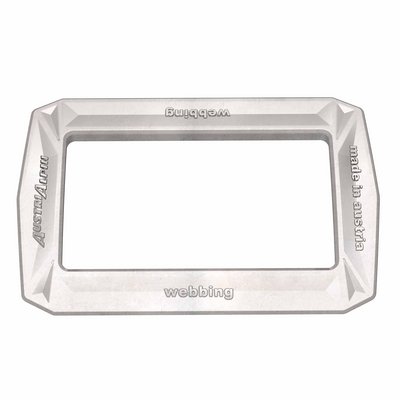

FRAMEBUCKLE
