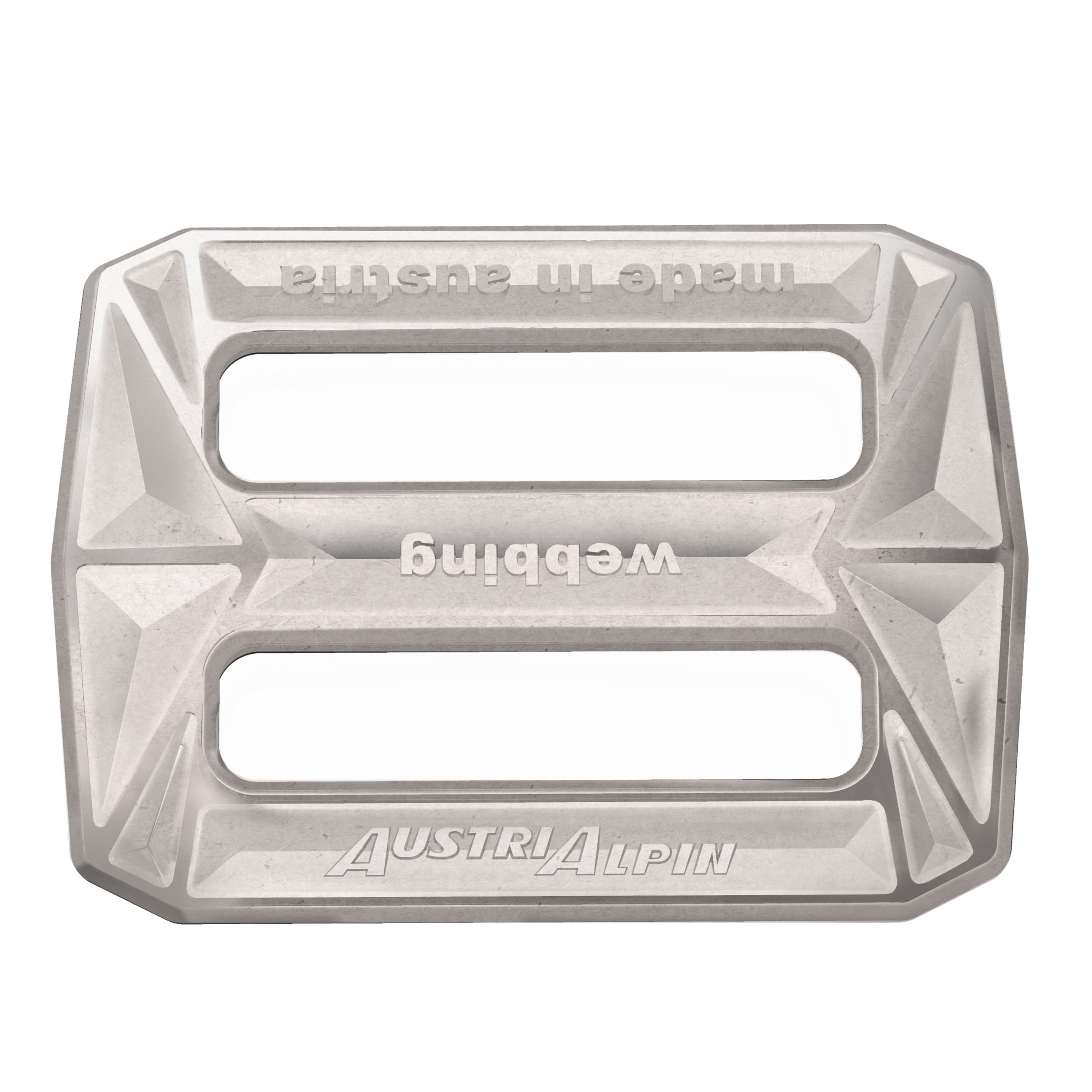

2-SLOT-FRAME BUCKLE
25 mm
Art.no.: DY25AFS
The next generation of ergonomically arched frame buckles impresses with a completely redesigned look and maximum functionality. Thanks to the embossed batch number, each buckle can be reliably traced.
The new models retain all proven technical properties of their predecessors. These include high tensile strength for maximum safety and load capacity, as well as excellent corrosion resistance in accordance with EN ISO 9227.
2-slot frame buckle DY25AFS must be used in combination with matching frame buckle DY25_FB only.
use cases:
PPE, Fashion, air sports, tactical, equipment
Technical specifications
Main material aluminium / polished
Maincolor colorless
Breaking load tensile strength7.5kN
Breaking load loop configuration15kN
Weight9g
Recomm. webbing width25mm
Outer dimension length30mm
Outer dimension width40mm
Outer dimension depth4mm
Made in AustriaStandards EN ISO 9227
