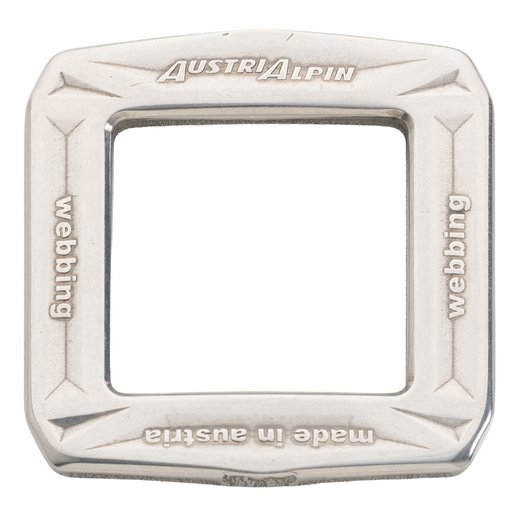

FRAME BUCKLE
25 mm
Art.no.: DY25AFB
The next generation of ergonomically arched frame buckles impresses with a completely redesigned look and maximum functionality. Thanks to the embossed batch number, each buckle can be reliably traced.
The new models retain all proven technical properties of their predecessors. These include high tensile strength for maximum safety and load capacity, as well as excellent corrosion resistance in accordance with EN ISO 9227.
Frame buckle DY25AFB must be used in combination with matching 2-slot frame buckle DY25_FS only.
use cases:
PPE, Fashion, air sports, tactical, equipment
Technical specifications
Main material aluminium / polished
Maincolor colorless
Breaking load tensile strength7.5kN
Breaking load loop configuration15kN
Weight10g
Recomm. webbing width25mm
Outer dimension length40mm
Outer dimension width42mm
Outer dimension depth4mm
Made in Austria
PatentedStandards EN ISO 9227
